Programski pogon
Programski pogon je multifunkcionalni prostor u prizemlju zgrade SKCNS-a, površine 410 m2, koji sadrži binu promenljivih dimenzija i led ekran maksimalne veličine 18m2. Prostor je predviđen za izvođačke umetnosti, koncerte, performanse, pozorišne predstave i filmske projekcije. Kapacitet publike je 200 sedećih mesta, dok je stajaćih mesta predviđeno maksimalno do 500.

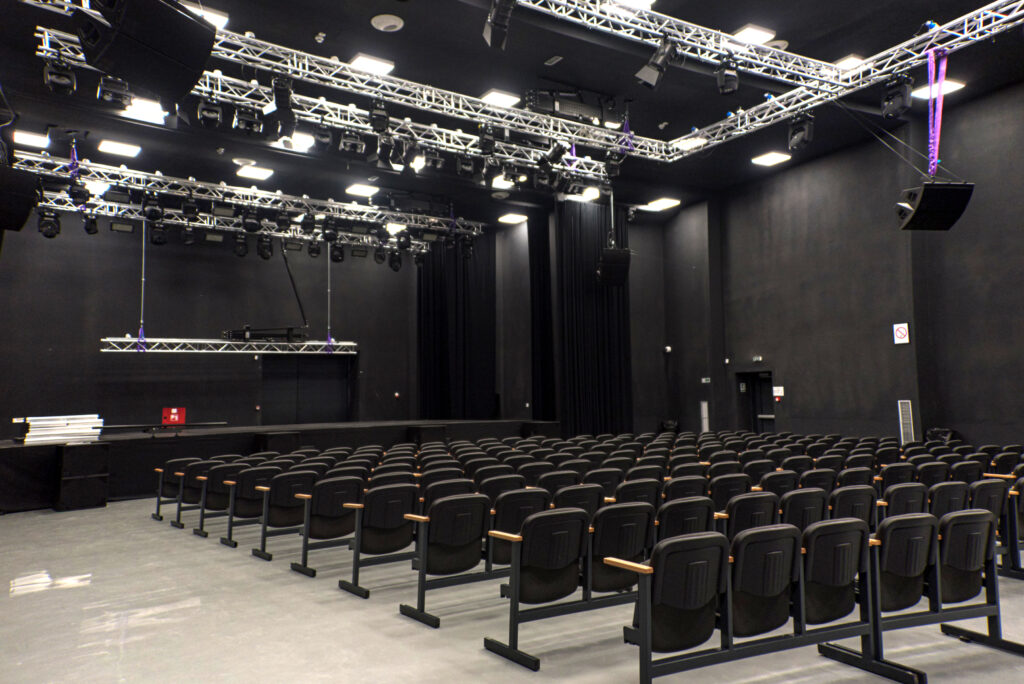

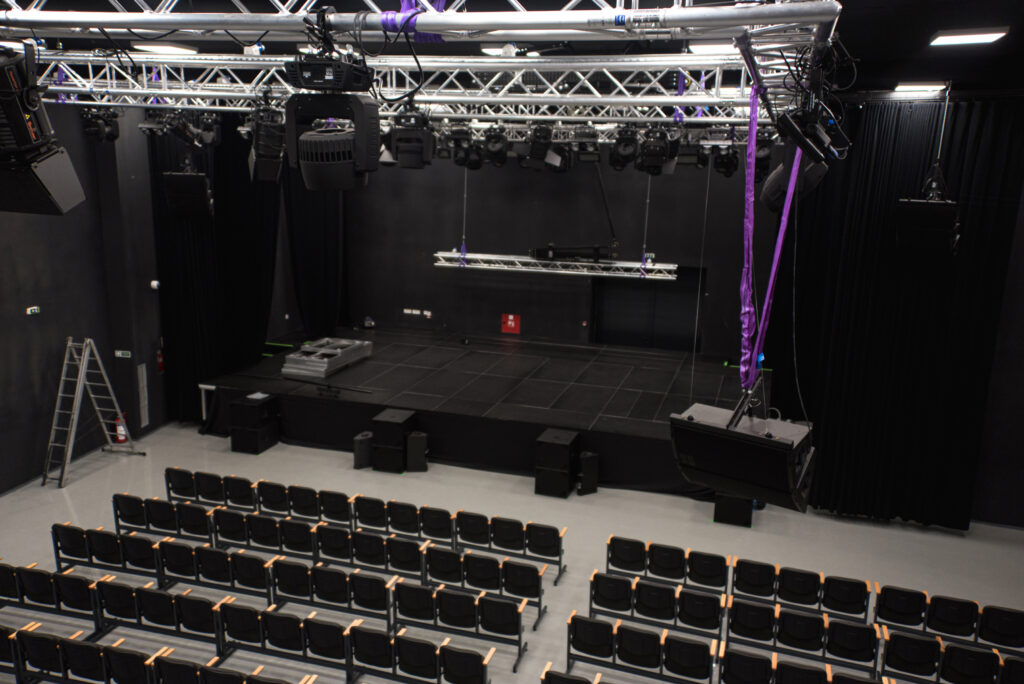

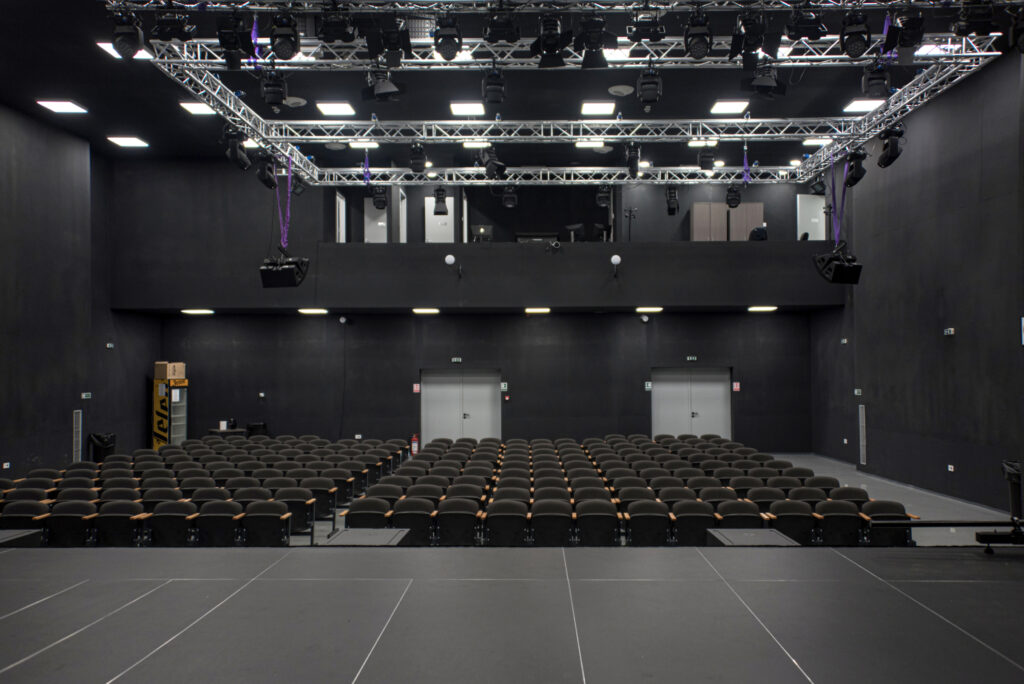

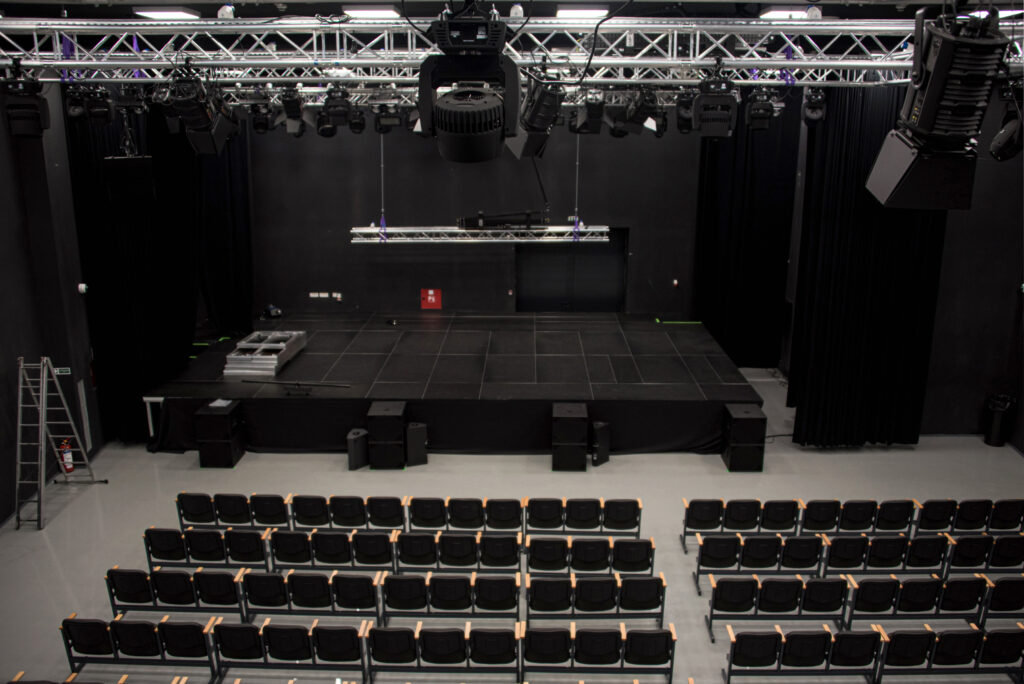

The venue is a multifunctional space on the ground floor of the main building, with an area of 410 m2, which contains a stage of variable dimensions and an LED screen with a maximum size of 18 m2. The space is intended for performing arts, concerts, performances, theater performances, and film screenings. The audience’s capacity is 200 seats, while the maximum number of standing seats is 500. Chairs are removable.
The square-shaped aluminum construction is designed for safe hanging of stage equipment. It consists of three structures for the back plan, truss elements for the front light and a square structure forms mounted above the audience intended for specific positions and adjustments. To
raise stage electric tractions, electric cranes, ie EXE Rise, were installed and put into operation 250kg D8+ engines. These reliable devices are characterized by a safety factor of 8:1 FEM class2, a double brake and low noise level in its class (68dB). Along with the main control unit, a
remote panel for their control from a remote position, which gives operators better insight when lowering and raising the truss. For easier work, pantographs were added for lowering and raising cables. The lighting park has about a hundred Chauvet and Spotlight LED lighting fixtures (wash, spot, pole, blinder, bar, pair, PC and profile reflectors). The lighting system is controlled by the well-known MA Lighting desk grandMA3 command wing XT, which represents the standard in cultural institutions.
The LED screen is a URM III Unilumin LED screen with a pixel pitch of 3.9mm.
The audio system consists of a DiGiCo S31 mixer in charge with the ability to control 56 input channels and 24 aux. paired with the D2 rack on stage. d&b audiotechnik sound boxes form the main sound system to the left and right of the stage, along with a delay line and additional front fill sound units, as well as a subwoofer sound box. For the more demanding performances, there are also monitor sound boxes.
Microphones: vocal and instrumental microphones DPA 2028, DPA 4011C and DPA 4099, as well as wireless microphone system with 10 independent microphone channels.
Front curtain with electric motor for its opening and closing, and rear curtain and side curtains for pockets. All curtains have the necessary fire resistance certificates
